उत्पाद विवरण
Place of Origin: CHINA
ब्रांड नाम: WINCOO
प्रमाणन: CE
Model Number: WQ-III
भुगतान और शिपिंग की शर्तें
Minimum Order Quantity: 1 set
मूल्य: USD+1800~4680+set
Packaging Details: Export package
Delivery Time: 30 days
Payment Terms: L/C, D/P, T/T
Supply Ability: 100 set/month
Applicable Industries: |
Manufacturing Plant, Construction works |
Marketing Type: |
New Product 2020 |
Condition: |
New |
Welding Process: |
Orbital Welding |
Material: |
Steel |
Welding Torch: |
TIG Torch |
Type: |
Orbital Welding Machine |
Cooling Method: |
Water Cooling |
Shape Of Tube: |
Round |
Control System: |
PLC |
Weight: |
16 |
Welding Speed: |
1-10 RPM |
Showroom Location: |
None |
Diameter Range: |
2-48 inches |
Applicable Industries: |
Manufacturing Plant, Construction works |
Marketing Type: |
New Product 2020 |
Condition: |
New |
Welding Process: |
Orbital Welding |
Material: |
Steel |
Welding Torch: |
TIG Torch |
Type: |
Orbital Welding Machine |
Cooling Method: |
Water Cooling |
Shape Of Tube: |
Round |
Control System: |
PLC |
Weight: |
16 |
Welding Speed: |
1-10 RPM |
Showroom Location: |
None |
Diameter Range: |
2-48 inches |

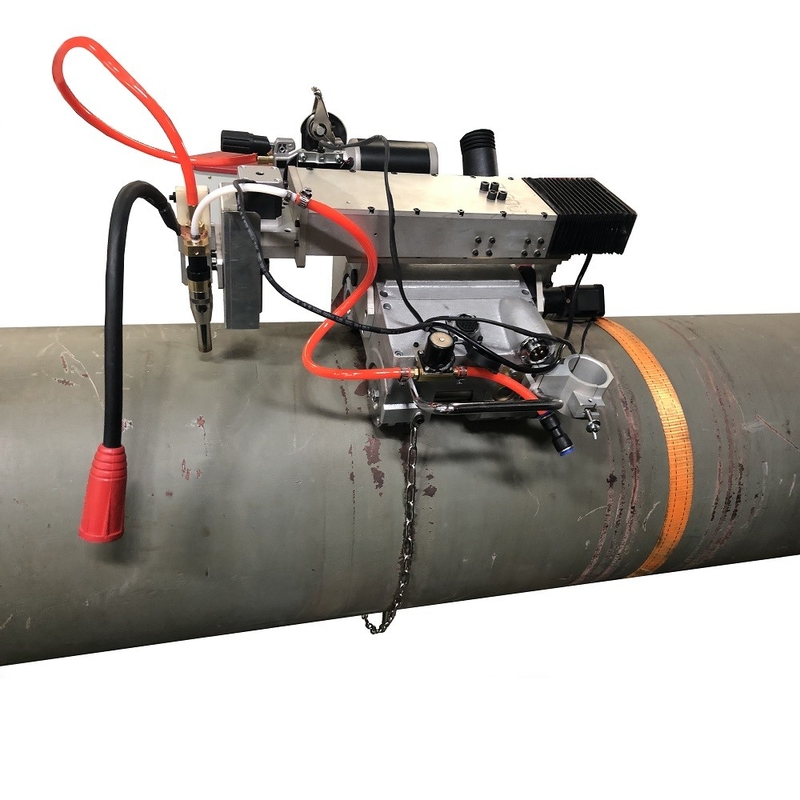

The WINCOO orbital welding machine is an autonomous, PLC-driven welding crawler engineered for high-precision circumferential welding of large-diameter pipelines (≥12") in field construction and cross-country projects. Its intelligent Siemens PLC integrates motion control, welding parameter management, and real-time seam tracking to execute flawless all-position welds (1G–6G) without pipe rotation.
| Category | Specifications |
|---|---|
| Pipe Compatibility | Diameter: 12–60 inches (300–1500 mm) • Wall Thickness: 6–40 mm |
| Welding Process | GMAW (MIG/MAG), FCAW • Dual-wire capability |
| Travel Speed | 50–350 mm/min (programmable) |
| PLC System | Siemens S7-1200 with 10" HMI touchscreen • Cloud connectivity for data logging |
| Power Supply | 380–480V AC • 350A output (100% duty cycle) |
| Weight | 28 kg (with magnets) • Payload capacity: 15 kg |
| Positioning Accuracy | ±0.2 mm (laser seam tracking) • Arc length control: ±0.1 mm |
Smart PLC Architecture
Unified control of travel speed, oscillation width, voltage, and wire feed.
Stores 200+ welding procedures (WPS) with automatic parameter interpolation.
All-Position Stability
Electromagnetic adhesion (1,500 N holding force) for vertical/overhead welding.
Gyro-stabilized torch head compensates for gravitational drift.
Advanced Sensing Suite
Laser vision joint tracking + through-arc monitoring for root-pass consistency.
Real-time defect detection (undercut, porosity) with audio-visual alerts.
Ruggedized Design
IP65-rated enclosure (dust/water-resistant) • Operates in -20°C to 50°C.
Quick-change track modules for pipe diameter transitions.
New Construction: Girth welding of API 5L X70/X80 pipes in oil/gas transmission lines.
In-Service Welding: Hot-tap and repair welding on live pipelines.
Lay Barge Operations: Offshore pipe-laying with saltwater corrosion-resistant components.
